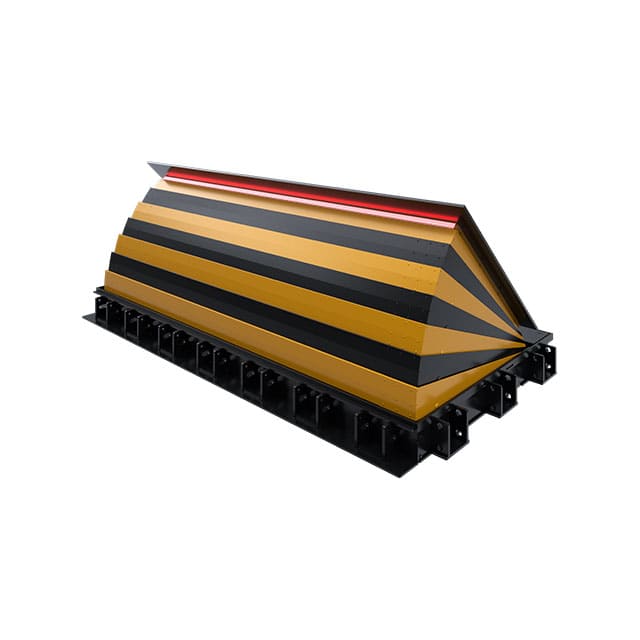

Ultra shallow road blockers were designed to protect the perimeter. This road blocker can stop truck of 7 500 kg (7,5 t) mass driving at 80 kph (50 mph) speed.

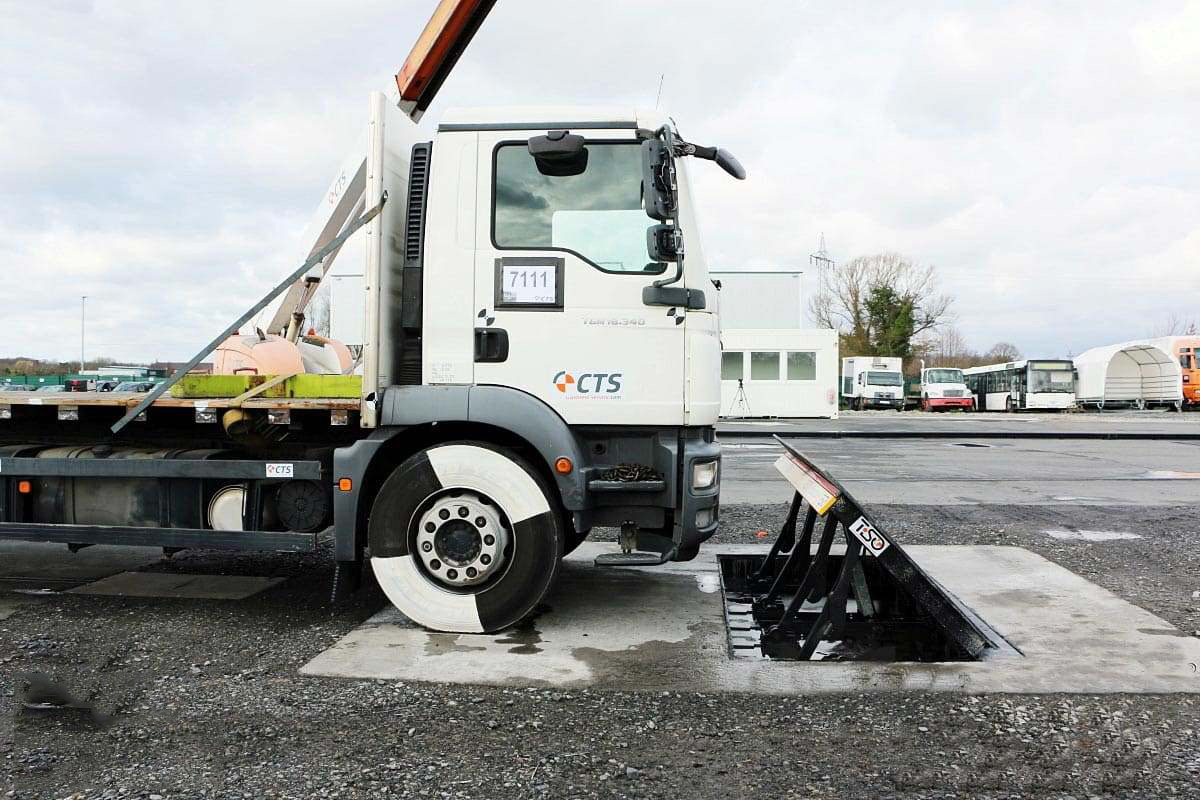

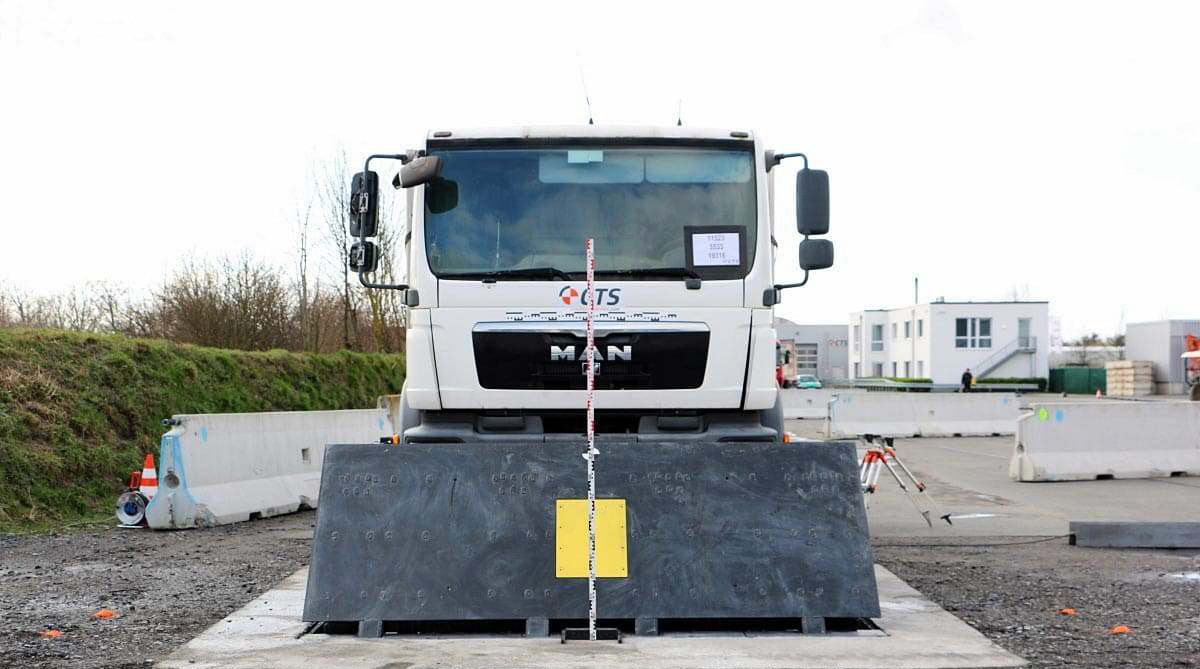

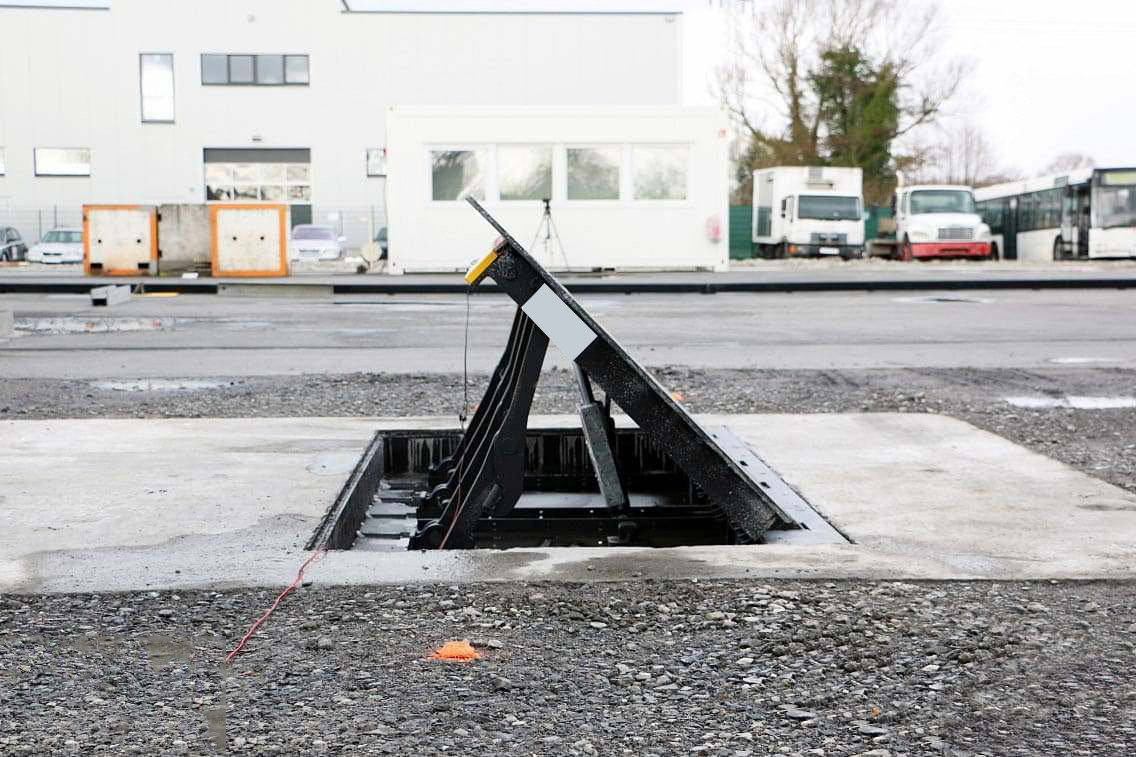

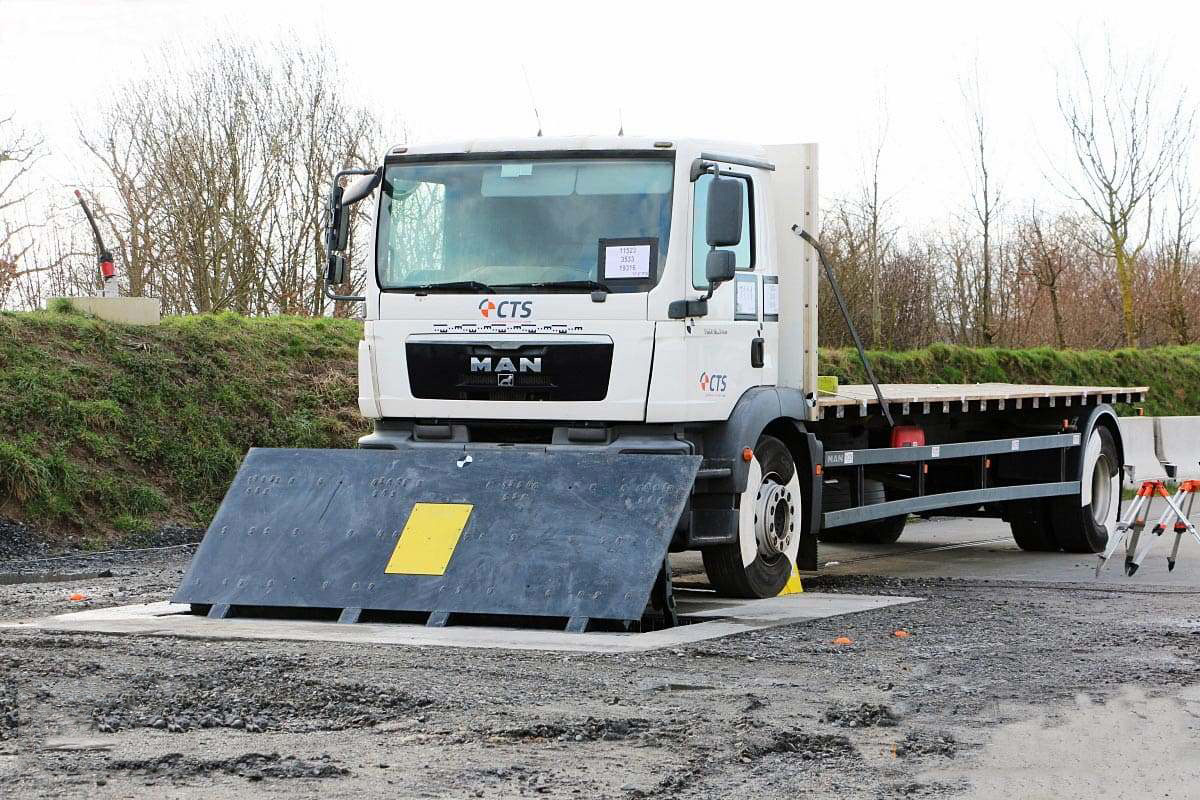

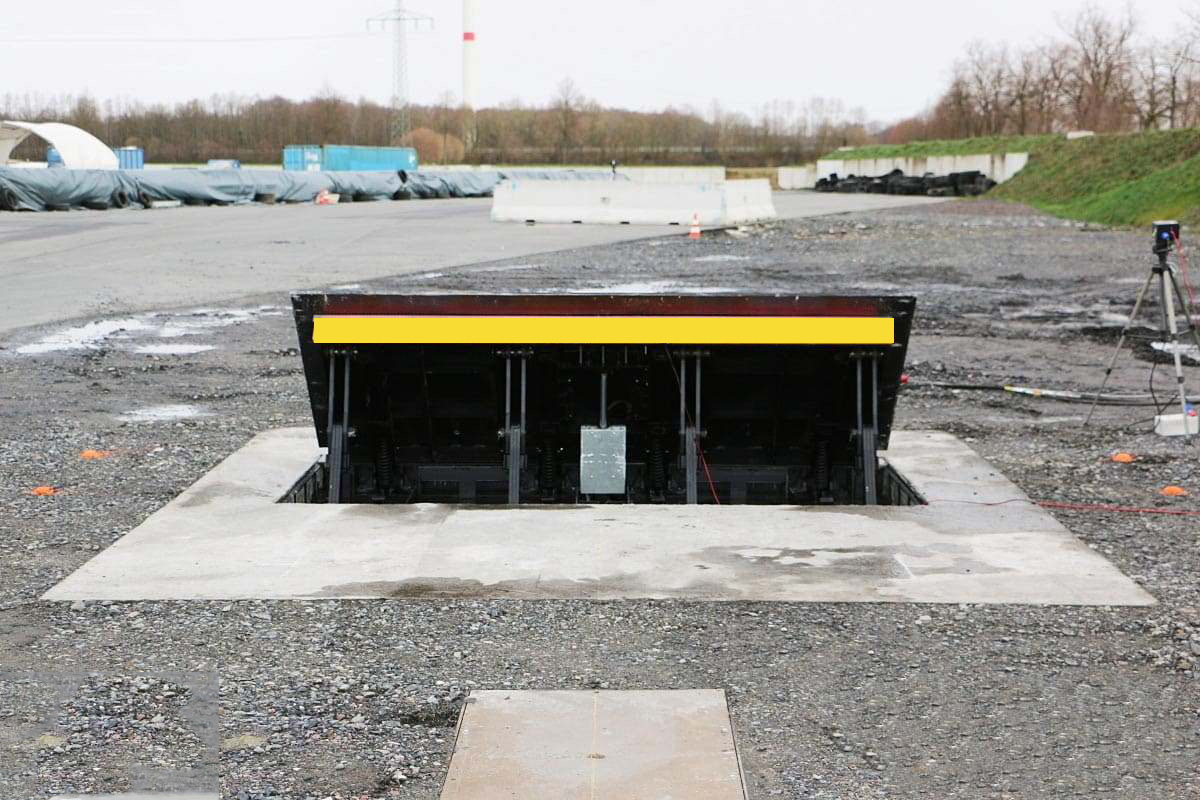

This is confirmed by successfully passed tests BSI PAS 68:2013 and IWA 14-1:2013. Such road blocker fully meets the requirements for the protection of highly classified objects. Being 950 mm height ultra shallow mounted road blocker (7,5t@80kph) has mounting depth of 200 mm. The completely innovative design of this lock allows you to combine its main anti-ram function with the simplicity and high speed of installation.
Zapytaj o ten produkt
Dane techniczne
| Model | RB332-01 | RB333-01 | RB334-01 |
| Security class | BSI PAS68:2013 and IWA14-1:2013 (7,5t@80kph) | ||
| Installation type | Submersible | ||
| Drive | Hydraulic / External | ||
| Blocking width, mm | 2000 | 3000 | 4000 |
| Height, mm | 950 (± 20 mm) | ||
| Dimensions*, mm WxLxH hxV | 2170x1690x200 950×1980 | 3170x1690x200 950×2980 | 4170x1690x200 950×3980 |
| Power consumption. kW | 4 | ||
| Rising time, s | 3,5 (± 1 s) / with EFO – 1,5s | ||
| Lowering time, s | 3,5 (± 1 s) | ||
| Installation depth, mm | 200 | ||
| Maximum axle weight limit, t | 15 | ||
| Penetration resistance, kJ | 1 957 | ||
| Power supply | 3 phases 400 V, 50/60 Hz (standard) 1 phase 230 V, 50/60 Hz (option) | ||
| Protection level | IP 67 (for road blocker) IP 54 (for control box) | ||
| Operating temperatures**, °C | -40 / +60 | ||
| Material | Structural steel C22 | ||
| Coating*** | Epoxy Polyurethane RAL 9005 Black / RAL 1003 Yellow | ||

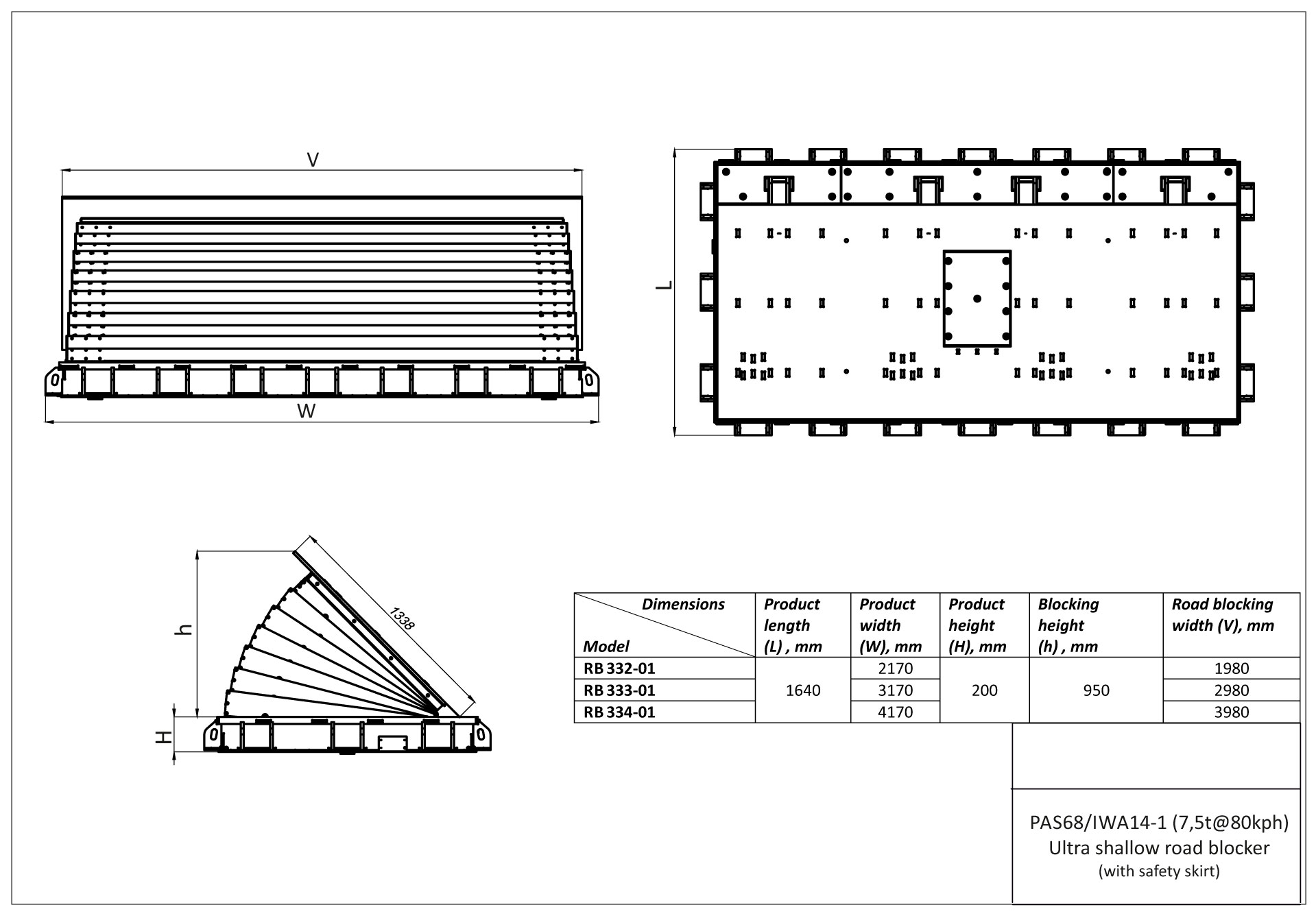

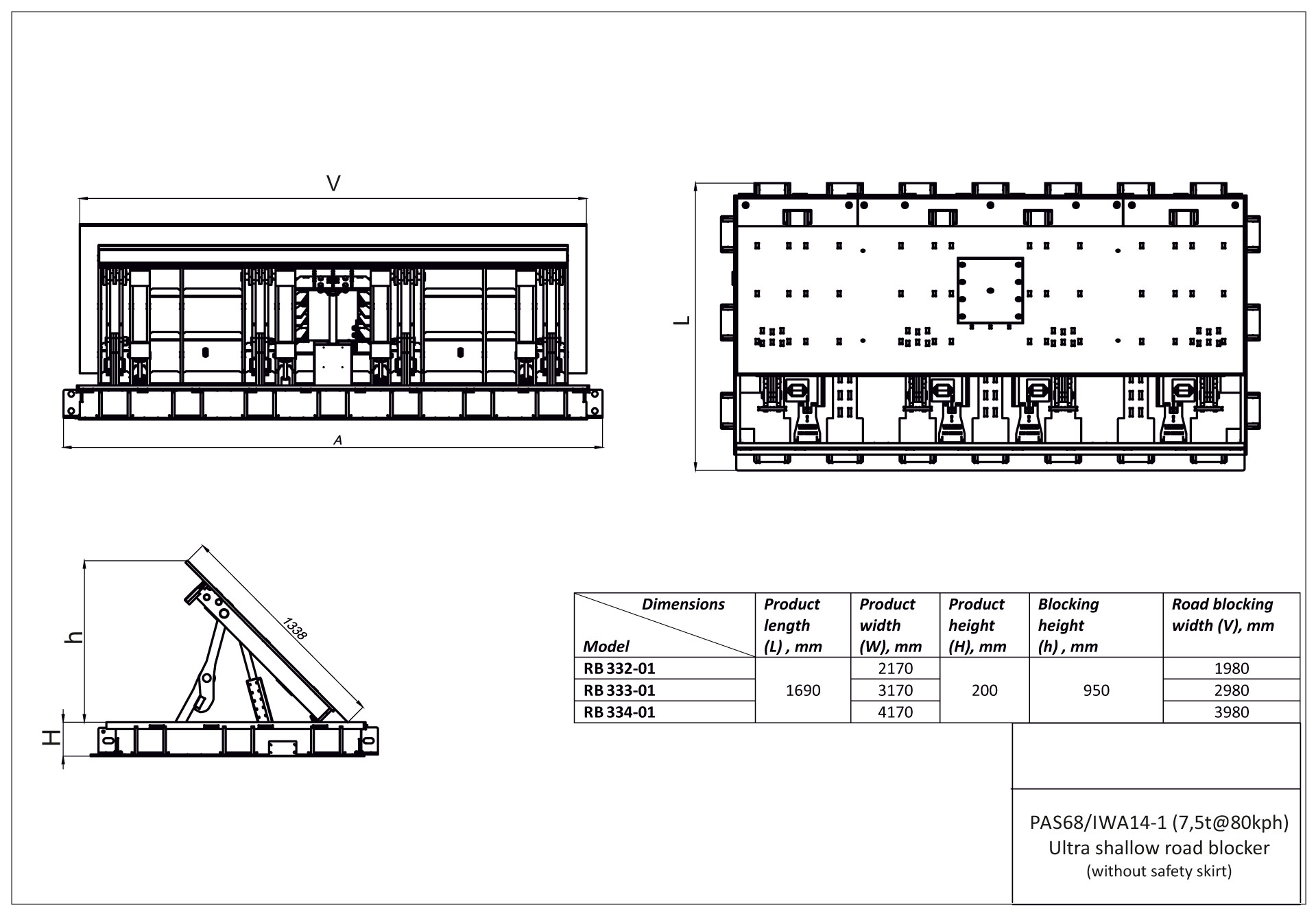

| * Dimension designations see in the Drawings tab ** For temperatures lower than -10 °C use the heating device; for temperatures higher than +40 °C use the cooler device *** Hot dip galvanization is available as an option | |||
