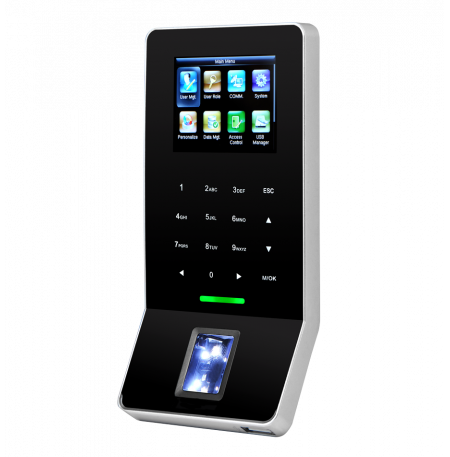

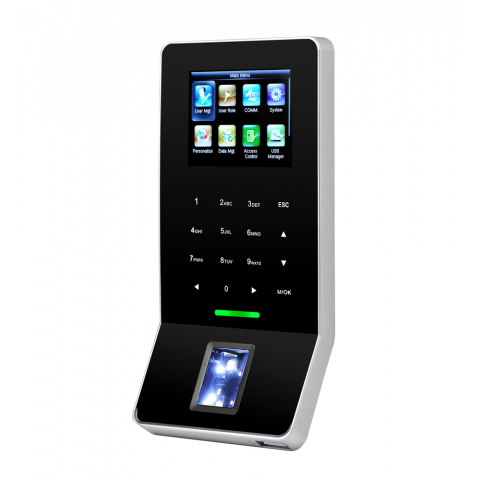

F22 is an ultra-thin fingerprint time attendance and access control terminal with SilkID sensor which offers unparalleled performance with advanced algorithm for reliability, precision and excellent matching speed. F22 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality infrared detection fingerprint sensor.
F22 provides a superior touching experience with touch keypad, and offers flexibility for standalone installation or with any third-party access control panel that supports standard wiegand signal. TCP/IP, RS485 and Wi-Fi are also available that the device can be used in different networks.
- SilkID fingerprint reader
- Standard Wi-Fi
- Full Access Control Features
- Multiple Verification Modes
- 2.4-inch TFT color screen and Touch keys
- Network interface by TCP/IP or RS485
Zapytaj o ten produkt
Dane techniczne
| Display | 2.4-inch TFT LCD Color Screen |
|---|---|
| Fingerprint Capacity | 3 |
| Card Capacity | 5000(Optional) ID or mifare card |
| Transaction Capacity | 30 |
| Sensor | SilkID Sensor |
| Algorithm Version | ZKFinger VX10.0 |
| Communication | RS232/485, TCP/IP, USB-host,Wi-Fi |
| Access Control Interface | 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm |
| Wiegand Signal | Input, Output |
| Aux. Input | 1ea for linkage function |
| Functions | DST, Automatic Status Switch, Record query, T9 input, 14 digit user ID, Anti-passback, Scheduled-Bell, Printer(Optional), ADMS(Optional) |
| Power Supply | 12V DC,3A |
| Operating Temperature | 0 ℃- 45 0℃ |
| Operating Humidity | 20%-80% |
| Dimension(LxWxH) | 158.5×78.0x19.4mm |
| SDK and software | Standalone SDK,ZKAccess3.5 software |
