Czytnik F19

f19-min

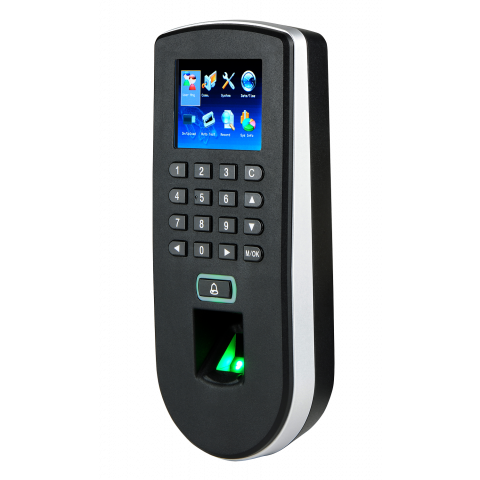

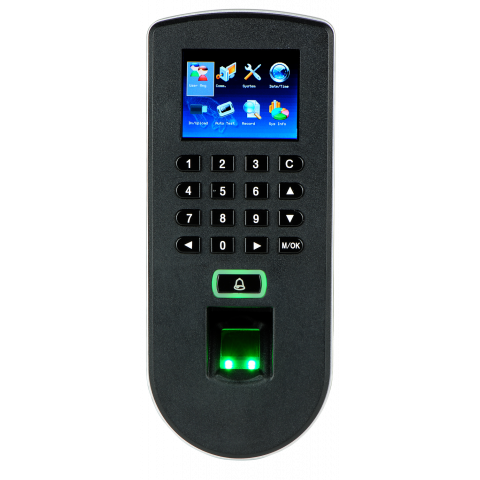

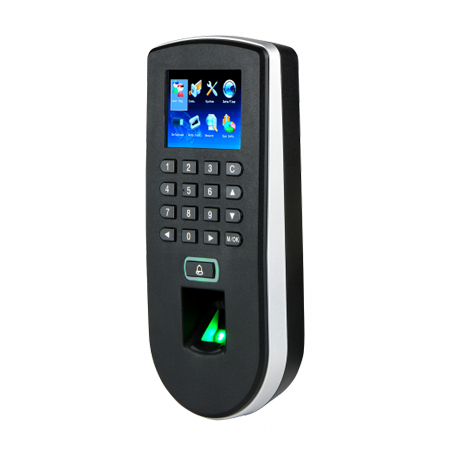

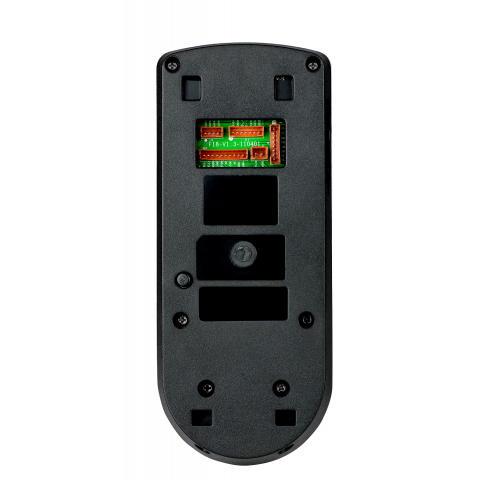

F19 is an innovative biometric fingerprint reader for access control application

Offering unparalleled performance by using an advanced algorithm for reliability, precision and excellent matching speed. The F19 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality infrared detection fingerprint sensor.

The device offers flexibility to be installed standalone or with any third party access control panels .that support standard Wiegand signal. All the operations can be done on the TFT-LCD color screen. The fingerprint image will be displayed on it. That will guide user to put finger on proper position and increase recognition rate. TCP/IP and RS485 are available that the device can be used in different network.



  • TFT Color Screen
  •  Slim and Elegant Design
  •  Fast and Accurate Fingerprint Algorithm
  •  Easy Installation and Connectivity
  •  Full Access Control Features
  •  Easy Operation and Management



Zapytaj o ten produkt

Imię i nazwisko*

Adres email*

Telefon*

Nazwa firmy

NIP

Treść wiadomości

 Zgoda na przetwarzanie danych - Zgodnie z ustawą z dnia 18.07.2002 r. o świadczeniu usług drogą elektroniczną (Dz.U. Nr 144, poz.1204 z późn. zm.) wyrażam zgodę na przesyłanie informacji handlowych drogą elektroniczną przez CartPoland Maciej Twardowski ul. Olszowa 5 Wólka Mińska, 05-300 Mińsk Mazowiecki. Zgodnie z ustawą z dnia 18.07.2002 r. o świadczeniu usług drogą elektroniczną (Dz.U. Nr 144, poz.1204 z późn. zm.) wyrażam zgodę na przesyłanie informacji handlowych drogą elektroniczną przez CartPoland Maciej Twardowski ul. Olszowa 5 Wólka Mińska, 05-300 Mińsk Mazowiecki. Zgodnie z art.6 ust.1 lit. a ogólnego rozporządzenia o ochronie danych osobowych z dnia 27 kwietnia 2016 r. wyrażam zgodę na przetwarzanie moich danych osobowych w celu obsługi zgłoszenia (zamówienia).

Dane techniczne

Fingerprint Capacity 3.000 (1:N)
Transaction Capacity 30.000
Sensor ZK Optical Sensor
Algorithm Version ZK Finger V9.0&10.0
Communication RS232/485, TCP/IP, USB-host
Access Control Interface 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Wiegand Signal Input and Output
Display TFT LCD Color Screen
Interface Styles Common, Matrix and Magic styles
Standard Function Webserver, Anti-passback
Optional Function ID Card, Mifare Card
Power Supply 12V DC,3A
Operating Temperature 0 °C- 45 °C
Operating Humidity 20%-80%
Dimension(WxDxH) 87×195×42.5mm
